Neopost DS-90 Folding Inserting Machine: Specs & Guide

The Neopost DS-90 (now Quadient) is one of the range’s highest-volume folder inserters, reaching up to 4,300 cycles per hour with up to seven feeders. It offers full-page reading, a PowerFold capacity of up to 10 sheets per envelope and a colour touchscreen, built for high-productivity mail rooms.

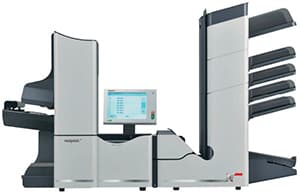

Neopost DS-90 Folding Inserting Machine

The DS-90 is one of Neopost’s largest-volume machines, capable of a top speed of 4,300 cycles per hour. With beneficial features and up to seven different feeders, it helps any business fold and insert their mail more professionally and quickly.

The DS-90 comes with full-page reading and scanning capabilities for accurate content control and flexible document intelligence markings. It has various specification options and upgrades to suit different businesses, for example expanding feeder stations from two to seven for extra capacity. With a large PowerFold capacity supporting up to 10 sheets in one envelope, plus a full-colour touchscreen, this machine was built for higher productivity.

View our range of Neopost folding inserting machine envelopes here.

Neopost DS-90 Specifications

• Speed: 4,300 cycles per hour
• Fold Types: Letter, single fold, zigzag fold, double-parallel fold, no fold
• Job Memories: 25
• Number of Feeders: Up to 7
• Document Feeder Capacity: 725 sheets, 80gsm
• Envelope Feeder Capacity: 500 or 1,000 envelopes
• Maxi Feeder Capacity: 1,200 sheets, 80gsm
• Manual Feed: Yes
• FlexFeed Multi-format Feeder: Yes
• Multiple Sheet Feeding: Yes
• 2D Data Matrix: Optional
• Barcode Reader (BCR): Optional
• Short Feeders: Optional
• Dimensions: Depth 420mm, Height 925mm, Length 1500mm
• Weight: 140kg

Neopost DS-90 Document Specifications

• Document Height: 90mm – 356mm
• Document Width: 130mm – 230mm
• Document Weight: 60gsm – 250gsm
• Envelope Length: 90mm – 162mm
• Envelope Width: 160mm – 248mm
• Set Thickness: 2.5mm

Frequently asked questions

How fast is the Neopost DS-90?

Up to 4,300 cycles per hour, making it one of the highest-volume folder inserters in the Neopost range.

How many feeders does the DS-90 have?

It is expandable from two to seven feeder stations.

How many sheets can the DS-90 fold into one envelope?

Up to 10 sheets, using its PowerFold capacity.
