Comms Link
Internet cable (wired option only)
USB cable
Power adapter
Fastener strips
Instructions
Installation takes about 10 minutes.
Requires an available internet socket and power outlet.

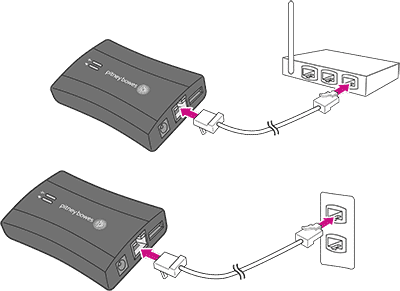

Connect the Comms Link Device to either a wall internet socket or router with the included internet cable.
– Note that lights on the device will remain off.
– Scroll down to Step 2.

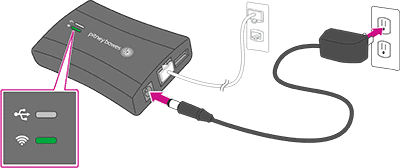

Plug the power adapter into the Comms Link Device and into a power outlet.
– The Comms Link Device’s lights will change in colour.
– Once the device is connected to the Internet, the Network Connectivity light will blink green.
– In addition, the Comms Link Device’s Ethernet port light will show green for successful connection status and yellow for network activity.
– Scroll down to Step 3.
Connect the Comms Link Device to your franking machine.
– Plug in the USB cable to the back of the meter and the Comms Link Device.
– The Comms Link’s lights will again change in colour.
– Once a network connection has been established, the Comms Link Device’s USB connectivity LED will turn green and the network connectivity LED will blink green.
– Scroll down to Step 4.
Optional: Attach the Comms Link Device to the meter with the included Adhesive Fastener Strips.
